Yes but I was specifically referring to the 3 years period for commissioning unless fit outs are pending.
Project delivery was put on hold for sometime over some issues which were duly corrected, then accepted, hence more delay.

It's better than nothing!


RISING SUN

Senior member
Dec 3, 2017
10,421
5,262
Yes but I was specifically referring to the 3 years period for commissioning unless fit outs are pending.
3 years is 1 year more longer than what I, as a civilian, will prefer, however considering the losses we have suffered in recent past, SOPs might have been modified to test as much as possible before boat can be declared fully operational.


randomradio

Senior Member
Nov 30, 2017
12,070
9,209
India
There are still a lot of areas that cooperation with the French can be achieved, French systems will still be used I'm sure. There is just a need to graduate away from dependency and stimulate the local defense industry. The French won't divulge anything too critical about nuclear propulsion and technology, so it is best to become self sufficient faster. Besides, strategic cooperation with Korea is also important, considering they share similar strategic concerns wrt China that the French don't necessarily have as much of an impetus for.

Can't really say much about French cooperation though. It can be none, little or massive. But if we are to get sub tech from France, we need to invest in their subs. We can't invest in some other area and then ask for sub tech.

The Koreans aren't interested in challenging China though. However their main goal is to keep both China and Japan off their back. They don't want a repeat of WW2 and the Korean War. We are investing in their tech so that they can invest in ours, it's merely quid pro quo.

Overall, I am not really hung up on which sub is chosen though. Both options are very good. The only problem is if Russia or Germany are chosen.

I definitely agree, submarine warfare is a major component of any modern say conflict, but there is still a need for the IN to wean itself off foreign systems and arms. It doesn't have to be all at once, but it needs to be consistent for development to progress. How can India hope to compete with the latest and greatest arms without supporting its domestic industry?

The navy has a proper plan for sub indigenisation. After SSBN and SSN, the next plan is to indigenise SSKs after the P-75I program is done and dusted. Ours is quite similar to what Korea is doing. They started off with a plan to build 9+9 imports, they chose the Type 209 and 214 for that, and followed that up with 9 indigenous subs. So they did it with 27 subs whereas we are planning the exact same thing with 6+6+12, with 6 Scorpene, 6 P-75I and 12 indigenous, willbe funny if we choose French for both the imports. 6 of the 12 indigenous subs became SSNs, but a new sub plan will be laid out before 2027 for the next 30 years, which may see us adding some more indigenous SSKs, although I suppose the main thrust will be towards SSNs of two different classes.

I think this is a major issue with any VLS the IN tries to implement with diesel-electric submarines. The current Brahmos missile is just too large and heavy for it to be practically carried in sufficient numbers. I wish India had a more compact missile (I know there are some on the drawing board) but the IN needs to make do with what it has and plan accordingly.

The Brahmos-1 family is fine. The Koreans are planning to use SLBMs from their subs which are much bigger and heavier. It may not be an IRBM or ICBM, but it's definitely gonna be as big or bigger than Brahmos. Also the issue with Brahmos is not the diameter, it's the length. At 9m it's pretty long. But it's not a problem for a submarine that has a beam of 10m like the KSS-III. It's diameter is merely 0.6m, so that's pretty normal. Let's not forget it easily fits between the MKI's nacelles, which is a very small space for such large missiles. Nirbhay has a diameter of 0.5m, pretty much the same as the Tomahawk and even the Korean Hyunmoo-3, which is expected on the KSS-III.

Btw, Korean BMs have been derived from Russia's Iskander. This missile has a diameter of nearly 1m. The SLBM may also be derived from it.

There's also the possibility of Brahmos-2 becoming available by the time the P-75Is are commissioned, so we have to take that into consideration as well. It's expected to be of a similar size as Brahmos-1.

  • Like
Reactions: Ginvincible

Ashwin

Agent_47
Staff member
Administrator
Nov 30, 2017
4,901
8,019
Bangalore


kurup

Active member
Dec 4, 2017
129
220
India
Is this the Scorpene, the short fin Barracuda, the SMX Ocean, the Suffren class or some other unknown sub? Pls clarify as the entire thread seems to have gone haywire in the past few pages.
Its a Scorpene . Zoom in and you can see the IN flag .


Gautam

Team StratFront
Feb 16, 2019
12,542
9,445
Tripura, NE, India
Evidently you didn't get the sarcasm & what's more exercise your moderation rights to shift those posts belonging to different threads to their rightful place.
Thank you for notifying. I wasn't up to date with the rest of the thread. Moved the post to relevant thread.
Its a Scorpene . Zoom in and you can see the IN flag .
Welcome back. Been a long time since you last posted. :love:


Gautam

Team StratFront
Feb 16, 2019
12,542
9,445
Tripura, NE, India

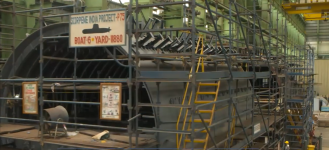

Found some pics of the Kalvari class diesel-electric submarines during various phases of their construction at the Mazagon Docks Ltd. The construction of the submarines began at MDL's dry docks. Sections of the internal pressure hull was built first.
Screenshot (310).png

The submarines were constructed using modular construction method. Which means the submarines were built in sections and then assembled.
Screenshot (345).png

Also, MDL has some massive drydocks. Each drydock seems capable of building at least 2 submarines simultaneously.
Screenshot (353).png

There seems to be at least 2 drydock engaged in the construction activities.
Screenshot (316).png

The second drydock is larger and seem to be capable of building more sections simultaneously.
Screenshot (366).png

The pressure hulls was initially built with many additional surfaces to allow easy and secure mounting of scaffolding and climbing ropes to the hulls.
Screenshot (372).png
These additional surfaces allow shipyard workers to work on unwieldy surfaces. Of course when work on a section of the submarine ends these surfaces need to be cut/grinded off.
Screenshot (371).png

In the photo below you can seen workers grinding off hooks/handles from a submarine's sail/tower. The hooks were used for mounting climbing ropes for workers working inside the tower. Once the work is complete the hooks are removed.
Screenshot (370).png

Most of the outfitting work is done after the submarine sections are assembled. But the engine is fitted in before assembly. The engine is of course built in a separate plant located close by and transported via giant trucks.
Screenshot (369).png

Once the engine arrives to the dry dock it is attached to one of the goliath cranes of the dock. The crane lifts the engine off the truck and places it onto a set of rollers. The rollers are directly in line of the engine section of the hull. Then the engine can be pushed on to the hull section using hydraulic rams.
Screenshot (367).png


continued below...
