French Navy upgrade and discussion

_Anonymous_

Senior Member
Dec 4, 2017
12,401
8,963
Mumbai
Lol, Paddy.The French here seem to be intent on taking the Brits to the cleaners.

What with Brexit & all the attendant problems with the economy. Then there's your manufacturing , automobile industry,etc going belly up. Plus there's the desperate situation of RR.Add to that the RN behaving as if it were run by rank amateurs. All the more galling when you consider Brittania ruled the waves not so long ago. Of course, the mullahs in Iran must be laughing their arses off. As are the French here.

Ppl still love kicking a person when he's down. Especially the French when it comes to the Brits .


A real pity!!


BMD

Senior member
Dec 4, 2017
5,923
1,384
We always tease each other a lot, but in hard times we always find each other.

part of these 14. The real figure is not known.
So basically you do not know what you are talking about. Okay, thanks for confirming the obvious.


_Anonymous_

Senior Member
Dec 4, 2017
12,401
8,963
Mumbai
How can one forget Franco-Nazi collaboration 1940-2020.
Put another way the French & ze Germans finally fulfilled Monsieur Napoleon & Herr Hitler's dream of a unified Europe sans Britain. It's obvious the Brits would scream bloody murder, Paddy.


BMD

Senior member
Dec 4, 2017
5,923
1,384
Put another way the French & ze Germans finally fulfilled Monsieur Napoleon & Herr Hitler's dream of a unified Europe sans Britain. It's obvious the Brits would scream bloody murder, Paddy.
It's a German Europe not a French one though.


Picdelamirand-oil

Senior member
Nov 30, 2017
1,726
2,185
France
transition.wifeo.com
La France marque sa présence dans le Pacifique en communiquant sur l’escale du sous-marin Émeraude en Australie

Translated with www.DeepL.com/Translator (free version)

France marks its presence in the Pacific by communicating on the visit of the submarine Emeraude to Australia

BY LAURENT LAGNEAU - 11 NOVEMBER 2020

Generally speaking, the French Navy communicates very little about the current missions of its nuclear attack submarines [SNAs] and almost never about those of its nuclear ballistic missile submarines [SSBNs], except in exceptional cases, as was the case with the Inflexible, during two visits to Faslane, i.e. to the British deterrent den, in 2000 and 2007.

Therefore, departing from this discretion from time to time is a way for France to give more weight to a message it is trying to get across. For example, the stopover of the SNA Casabianca in Severomorsk in 2003 [followed by that of the Russian submarine Vepr in Brest in 2004] was intended to illustrate the desire of Paris and Moscow to maintain a constructive dialogue while turning the page on the Cold War years, when the submarine forces of both countries were playing cat and mouse. We're not here today...

Another example: in 2018, accompanying the multi-mission frigate [FREMM] Bretagne, the SNA Améthyste was stationed at the US naval base in Norfolk. There, it was a question of "consolidating the bonds of friendship" between the French Navy and the US Navy, the admiral commanding the submarine forces and the strategic oceanic force [ALFOST] having received his American counterpart on board the submarine.

Another example of this "naval diplomacy" was given on 10 November, via a very short statement [8 lines only] on the Emeraude SNA's port of call in Perth, Australia. And this communication is all the more exceptional in that FOST has only three operational ANS at present [the Pearl is awaiting repair, the Sapphire has been disarmed and the Suffren is waiting to be commissioned].

"The nuclear attack submarine Emeraude and the metropolitan support and assistance vessel [BSAM] Seine are in Perth as part of a long-term deployment. This stopover was preceded by a joint exercise with Australian ships", the French Navy said.

The day before, the Australian Ministry of Defence had already announced the Emerald ANS's port of call in Perth in a statement which, just as short as the one published in France, stated that the two French ships had just taken part in manoeuvres off Fremantle involving the submarine HMAS Sheean and the frigate HMAS Anzac as well as a P-8A Poseidon maritime patrol aircraft.

It should be noted that this exercise was the subject of a message published on Twitter by Australian Admiral Jonathan Mead. For an unknown reason, he is no longer available at this time.

In any case, the communication around this Australian visit of the SNA Émeraude and the BSAM Seine in Australia aims to convey the message that France intends to mark its presence in the Indo-Pacific region, where it has territories and interests to defend, while emphasising its strategic relationship with Australia, which has ordered 12 submarines as part of the Attack programme.

"This event is part of our defence cooperation with Australia and illustrates the strength of our bilateral relations and interoperability. As a coastal nation, France is demonstrating its determination to play a major role in terms of security and stability in the Indo-Pacific zone, where the French Navy's resources are regularly deployed," commented Sirpa Marine.


_Anonymous_

Senior Member
Dec 4, 2017
12,401
8,963
Mumbai
Normally Australia does not agree to receive nuclear-powered ships, but nothing is normal here. :ROFLMAO:
Surprising. I always thought it was NZ which never hosted N ships or subs especially given the Greenpeace ship episode. Didn't Australia house US aircrafts carrying N gravity bombs during the Cold War? I think the arrangement continued till Clinton or Bush's tenure, IIRC.


Picdelamirand-oil

Senior member
Nov 30, 2017
1,726
2,185
France
transition.wifeo.com

OPTIONS FOR THE FUTURE CRUISE/ANTI-SHIP WEAPON

While the joint French-German-Spanish FCAS project is attracting a lot of attention in aerospace circles, and rightfully so as the development of a new fighter and of remote carriers promises to be riveting, it is not the only project that will define how the French Air Force will fight its future wars. There is another one that is almost equally as important, the Future Cruise /Anti-Ship Weapon (FC/ASW), which is being developed in cooperation with the United Kingdom.

In fact, early studies have been launched in 2017, and recent elements published in the press and in a report by the French parliament shed light on the various options considered by the two countries.

A BIT OF HISTORY​

Before trying to look into the future, it is good to understand how this programme came to life. France and the UK have a close defense relationship, and historically had separate missile manufacturers. France had Matra and Aerospatiale, and the UK had BAe dynamics.

In 1989, France contracted Matra to develop the Apache, a stand-off weapon carrying anti-runway munitions, since the then current approach of dropping bombs on them was not expected to be survivable against future Warsaw Pact defenses.



Cutaway of the Apache, with the submunitions visible

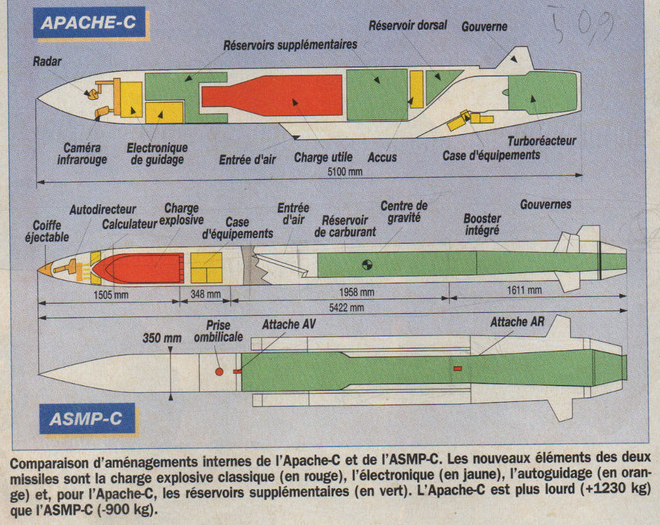

The Apache had all the basics of a cruise missile, with a small jet engine and deployable wings, but had a short range of only 140km. The submunitions were also not adapted to attacking heavily reinforced bunkers.

Nevertheless, it encouraged the French to procure a true air-launched cruise missile to defeat hard targets far behind enemy lines. At the start, this programme pitched a derivative of the Apache proposed by Matra, against a derivative of the nuclear-tipped ASMP (Air-Sol Moyenne Portée, medium range air to ground) missile that was being developed by Aerospatiale

Warheads are in red, fuel in green
Apache-C won the competition in 1996, due to its lower price and higher payload (500kg vs 240kg for the ASMP-C). The fact that it clearly differentiated nuclear and conventional weaponry might also have played a role. It became known as Scalp EG in France and Storm Shadow in the UK.

At the same time, the UK was also looking for a long-range strike weapon to put under its Tornado fighters. The two countries decided to merge the programs, and at the same time to consolidate the industrial sector and also merge BAe dynamics and Matra in 1997. This was the start of a wave of mergers in European aerospace, with EADS created in 2001 and absorbing most of the national actors. The same year, MBDA, Europe’s current missile powerhouse, was created by adding Aeropatiale, Alenia and Marconi’s missile activities to the BAe-Matra core.

To this day, MBDA is almost the only missile manufacturer in Europe, dominating its rivals by at least an order of magnitude. It is however not fully integrated: a quick look at its product line shows a lot of self-competing products, because there are still a French MBDA, a British one and an Italian one, and the nations maintain it that way through specific orders instead of all buying the same weapons. However, efforts are made to increase the cooperation between the French and British parts, with the two governments having accepted to be dependent on one another and to create centers of excellence to remove redundancies between the two countries. This effort, called One MBDA, was launched in 2017 at the same time as the early studies for FC/ASW.

REQUIREMENTS​

In order to understand what possible options might be chose for the future missile, let’s start by looking separately at the requirements for the roles it will have to perform

AIR-LAUNCHED LAND ATTACK​

The Cruise part of FC/ASW refers to a land attack mission against hardened targets. The requirement is to replace Scalp, so it will have to be air-launched, and to fit under a fighter’s wing. In 2030 and beyond, France will field Rafale and NGF, the Next-Generation Fighter developed as a part of FCAS. The UK will have Typhoon, F-35 and the Tempest it is currently starting to develop. Overall, since the next-gen fighters will be slowly introduced and are expected to be larger than the current ones, that means the most challenging design point is the use by Rafale and Eurofighter, so the missile will have to be under two tonnes and probably be of a length similar to Scalp, ie 5m to 6m.

Regarding the mission of the missile, it will cover at least the same target set as Scalp, so hardened bunkers deep within enemy territory. Scalp addressed it by having a 500kg payload split into two parts: a explosively-formed projectile (EFP) to punch a hole in the bunker, and a penetrator that would slide through that hole and then explode.

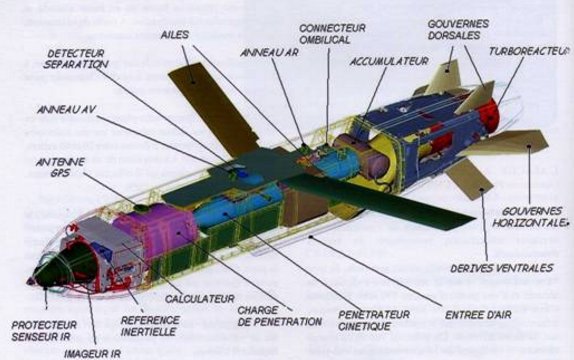

Cutaway of a Scalp. The penetrator is in blue and the EFP in purple.

It is unlikely advances in warhead technology will allow to significantly reduce it for FC/ASW. 500kg is the norm for cruise missiles, and the MdCN naval cruise missile recently developed by MBDA cannot penetrate hardened targets because its payload has been reduced to 250kg to increase the range. Payload mass is indeed a good first criteria to compare various cruise missiles:


NametargetsPayload mass (kg)Range (km)wet mass (kg)propulsion
Scalpfixed,
hardened sites
4504001300turbojet
ASMP-Cfixed,
hardened sites
240400885ramjet
MdCNmoderately hard site25010001400turbojet
JASSMfixed,
hardened sites
5004001000turbojet
JASSM-ERfixed,
hardened sites
5009001000?turbojet
JASSM-XRfixed,
hardened sites
100020002500turbojet

Scalp, ASMP-C and MdCN have been introduced previously, and JASSM is a US cruise missile, which evolved over the years into JASSM-ER and JASSM-XR. The -ER evolution in interesting because it shows what can be achieved by optimizing the missile while keeping the same airframe and warhead mass. This was done by increasing the fuel load and improving the engine. Some sources claim the total mass did not increase but I doubt it.

So as can be seen, a 500kg warhead is the norm. ASMP-C could not achieve that because its propulsion traded the efficiency of the subsonic turbojet for the Mach 3+ speed of the ramjet. Overall, to get a large payload over a large distance, the turbojet + large wings solution is the best one, it also corresponds to the tube and wing design of commercial airliners. The survivability of the subsonic missiles is ensured by a high level of stealth and a nap-of-the-Earth very low altitude trajectory, to make sure enemy radars do not get a line of sight on the missile.

To maximize its effect, the warhead must be delivered with high accuracy, even in GPS-denied environment. It is usually done by comparing the profile of the terrain encountered by the missile to a stored reference in the flight computer. This is called terrain comparison (TERCOM), or terrain-relative navigation (TRN). But it is not enough to reach a metric accuracy. To do so, in the last miles of its flight, the missile climbs a little bit and pops a cover over the nose to reveal an infrared sensor. This sensor takes a high-resolution picture of the target area and compares it to a synthetic image created based on satellite imagery and stored in the missile.

Overall, the same solutions will be likely adopted on FC/ASW, because the requirements are similar: a large 500kg payload, a long range to avoid air defences that are growing stronger, accuracy and survivability. That will lead to something looking a lot like Scalp or JASSM.

SEA- AND AIR-LAUNCHED ANTI-SHIP​

Unsurprisingly, the second main task of the FC/ASW will be to strike enemy ships. Here again, looking at existing anti-ship missiles, and especially their payload, is interesting:

NametargetsPayload mass (kg)Range (km)wet mass (kg)propulsion
LRASMships450>4001100turbojet
Exocetships165180740turbojet
NSMships127180410turbojet
Sea venomships <500t3020110rocket engine

LRASM is a US missile derived from JASSM. It has an exceptionally heavy payload for a Western anti-ship missile. It is probably because it is designed with the major Chinese combatants in mind, such as their carriers and LHDs. It also has a very long range.

LRASM
Exocet and NSM are more classical representatives of Western missiles, and are very similar to the well-known Harpoon. They carry a payload of around 150kg over a distance of 180km when flying a few meters above the water. The shorter range compared to the LRASM is because they were designed from the ground up for anti-ship, and the range requirement is usually not as high as for cruise missiles: since the target is moving there is a need for fresh targeting informations, and that means that the target has to be in the radar horizon of whatever sensor is pointed at it. For frigates, that’s usually the onboard helicopter, which can stay in radio contact with the frigate up to around a hundred miles (180km). LRASM was designed later, with a more network-centric approach to warfare, taking into account designation by other friendly assets and over-the-horizon datalinks.

Sea Venom is a lower-end missile, carried by helicopters and only designed to sink corvette-sized vessels. It is there to show that a relatively heavy payloads is required to take a frigate out of action.

Regarding the guidance of these missiles, Exocet relies on a radar and the rest use an infrared sensor. The latter seems common with the terminal part of the land-attack mission but the requirements are quite different. An anti-ship sensor has to work at a longer range to pick target as they appear at the horizon, a dozen kilometers away.




NSM sensor overview
Still, the NSM can use its sensor for land attack. Infrared sensor have the advantage of being passive, so they do not alert the target than an attack is underway. They are also high-resolution, enabling the missile to choose its impact point to maximize the damage.

In addition LRASM and the Australian NSM version have a passive radio receiver, allowing them to quickly classify contacts based on their radar emissions and for instance find the high-value target in a ship formation.

Not all anti-ship missiles are subsonic: the Russians have a proud tradition of Mach 2-Mach 3 missiles, the US considered a supersonic version of the LRASM initially, and closer to the topic the French had in the 1990s a project of an ASMP-derived (again!) missile called the ANS:

This underscores a recurring tension in French military thought between stealth and speed + maneuvrability as a way to achieve survivability. The former means you do not see the missile coming, the latter that you do but that your interceptors do not have the kinematic performance to reach it. The most striking example of the speed approach is that the last two generations of French air-launched nuclear cruise missiles, the ASMP and the ASMP-A, both use the Mach 3+ ramjet formula, and the next generation, the ASN4G, will reach Mach 7 or 8. These are supposed to go against the most defended targets, and show a clear preference for the speed option. However, they do not carry a heavy, 500kg payload.

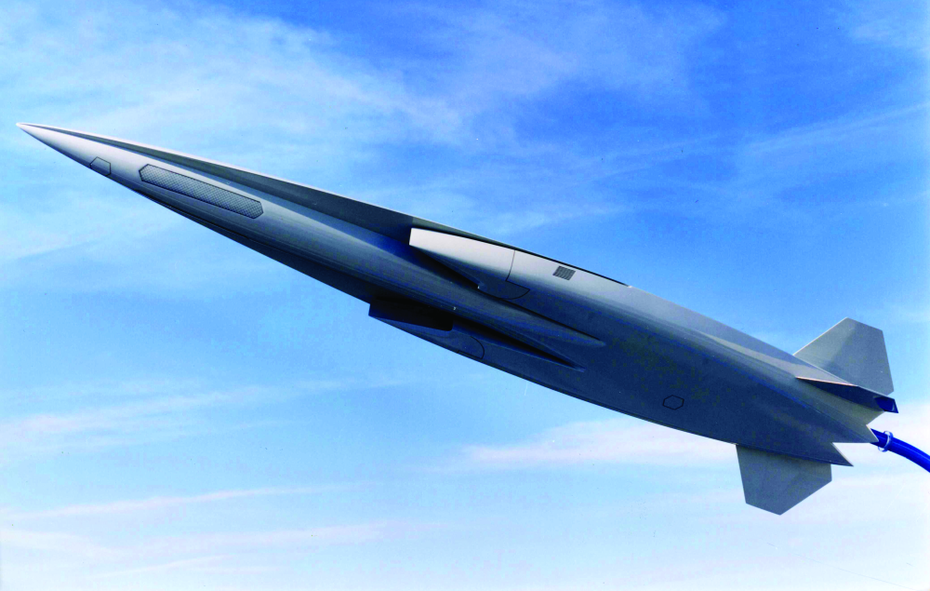

Concept art of the ASN4G
Leaks in the press stated that there was a point of contention between the French and British sides on FC/ASW, the first preferring a highly supersonic approach, and the latter a subsonic one. A recent report by the French parliament nuanced it: both seem to agree that subsonic is the way to go for the “Cruise” part, but the French still prefer supersonic for anti-ship. The report underscores that the British doctrine is to fight at a longer distance. These different approaches threaten the commonality and hence the cost target of the project: if two missiles with very different propulsion and airframes have to be created, there is not much saving to be expected compared to developing two fully separate missiles. On the other hand, if the French change their mind, the land attack and anti-ship can be very close and even identical if a solution like the LRASM is chosen: both would have a small turbojet, a subsonic airframe, and a 500km payload. The differences might lay in the composition of that payload: the EFP like on the Scalp is useless in anti-ship, but is not that heavy, so maybe a common warhead can be designed. A cheaper sensor might also be found on the land-attack version, but again for maximum commonality the same infrared sensor could be used on both.

An additional advantage of the highly supersonic missile over the subsonic one is that the time to target is much shorter, meaning the target has less time to move: flying 400km takes 300 minutes at Mach 0.8, so a ship moving at 25 knots can will have moved 22 km (13 nm). When flying at Mach 3, the flight time is 8 minutes, and the ship can only move 6km (3 nm). That means there is no need for a wide field of view sensor, and no need for mid-course updates.




Two concepts presented by MBDA during the 2019 Paris Air Show. Left is subsonic, Right supersonic (with a bonus anti-AWACS capability). Note the likeness with the ASMP.
A middle ground could be to have two missiles but with the same turbojet, or even one missile with a swappable warhead and/or sensor, as in MBDA’s Flexis concept. Nevertheless, the French are really focusing on the supersonic antiship concept, as outlined by the Chief of the Staff of the Navy.

Regarding launching platform constraints, the air launch means it will have to fit under Rafale, same as for the Cruise mission. The ship launch means it has to be compatible with angled deck launchers: these carry the anti-ship missiles on the French and British frigates. Fitting inside a vertical launch system (VLS) is not enough: many of those do not have silos deep enough for a strike-length weapon , and French vessels especially have very few silos. The latest addition, the FDI, only has 16, and they each contain an Aster missile for protection against air attacks. That gives a very limited capability, and reducing it to fit anti-ship missiles instead is not a good idea.

SEA-LAUNCHED LAND ATTACK​

Although not a part of the initial scope of the project, at least publicly, the report by the French parliament revealed that the Royal Navy was considering using FC/ASW for land attack from its future type 26 frigates. This is interesting because the type 26 are the only vessels of the Royal Navy to have strike-length VLS cells, able to launch long missiles such as Tomahawks. They have 24 such cells, so could pack quite a punch if they carried dual-use FC/ASW. Besides, they currently have no angled deck launcher: they are “fitted for but not with”.

On the French side, sea-based land attack is the purview of the FREMM ASM which have 16 strike-length Sylver A70 VLS cells, each able to carry a MdCN (and only that because they have a circular cross-section). The MdCN just entered service so the French Navy is not looking for a replacement right now.

There is also a question of what to do with the submarine-based cruise missile capability: the MdCN can be fired by a submarine from a 533mm torpedo tube, and the British submarines can fire Tomahawk missiles. Having a FC/ASW that does not fit the 533mm form factor would mean giving up this capability or purchasing another missile to replace them, likely from the US as only a handful is needed so a separate development would have a prohibitive cost. The same applies for the sub-launched anti-ship mission, currently done with a dedicated version of the Exocet and the Harpoon.

A peculiarity of this use case is that it requires more range than air-launched land attack, since the ship has to maintain a standoff distance to the enemy coast for added safety. So instead of the 400km of the Scalp, the minimum range requirement is more around 1000km, the range of the MdCN. Tomahawk cruise missiles go even further.

DESTRUCTION OF ENEMY AIR DEFENSE​

A last requirement, that is to my understanding only from the French side, is to be able to attack enemy air defenses, ie perform a SEAD (Suppression of Enemy Air Defenses) or DEAD (Destruction of Enemy Air Defenses) mission. That is a critical mission since Russian and Chinese-built systems are becoming more and more capable, and are being sold all over the world. So an Air Force that wants to operate in defended airspace has to be able to defeat them.

They consist of a network of missile launchers, radars, and command centers, called IADS (Integrated Air Defense System). In their latest version, all are mobile, can be redeployed quickly and spread quite far apart. The also often come with point defenses that are able to shoot down incoming munitions, especially if they are slow and non-maneuvering

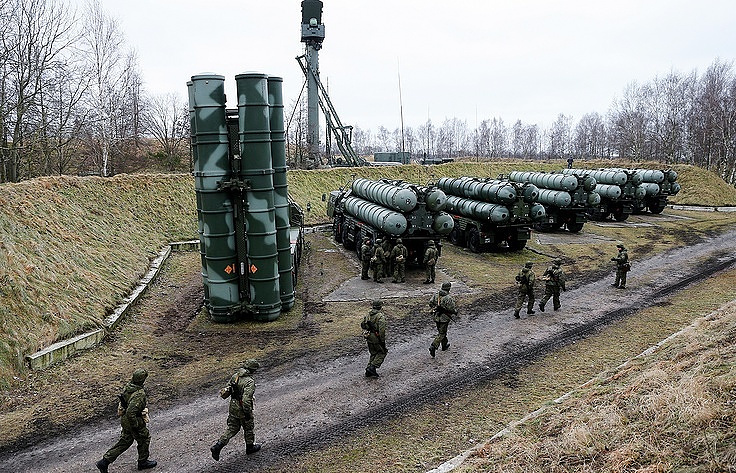

S-400 long-range SAM launchers with a relocatable radar in the background




Overlapping threats bubbles of a modern IADS
The high-value targets in a IADS are the command centers and the radars. They are also the easiest to find since command centers need to keep in touch with the rest of the assets so often have radio links, and radars emit a lot of power. Attacking the missile launchers with evolved munitions is a dubious propositions, as they can be quite a lot of them, and they can be mostly radio silent.

Since all these assets are mobile and are relocated often if they are well-operated, the traditional cruise missile targeting loop of acquiring satellite imagery of the target site, modelling it in 3D, defining manually a flight path and then launching a dedicated mission against the target is too long and does not work. What is needed is a responsive solution that can quickly engage targets that have just been detected. Here is a selection of missiles designed to do just that:

NametargetsPayload mass (kg)Range (km)wet mass (kg)propulsion
AARGMradars66100?360rocket engine
ARMIGERradars20200220ramjet
Spear 3vehicles?130<100turbojet

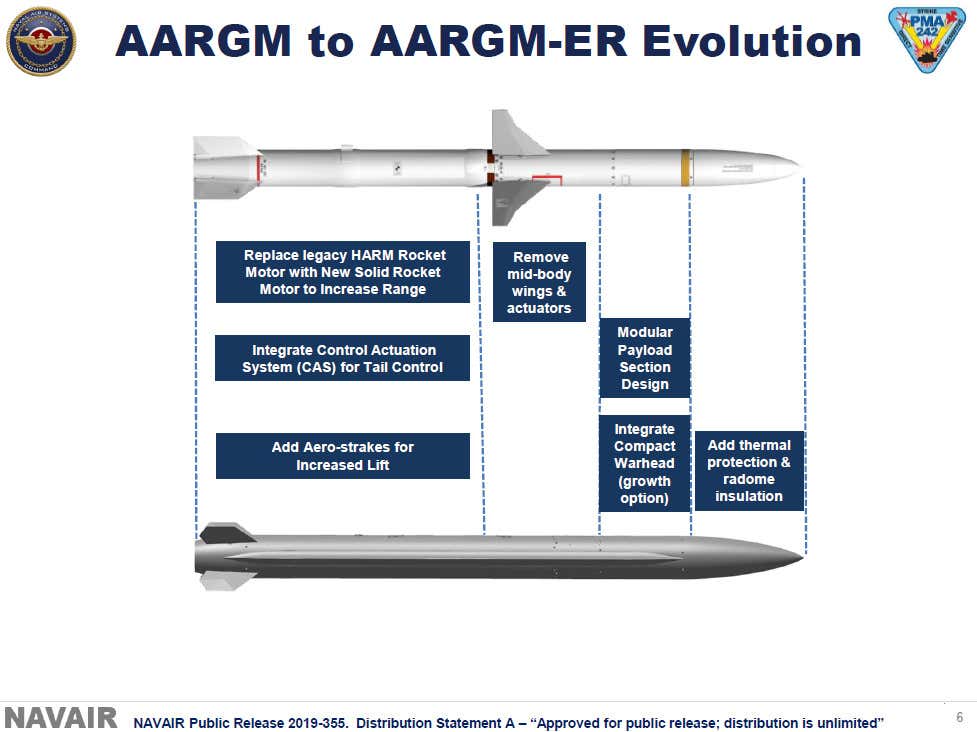

The gold standard on the NATO side is the HARM, which has evolved into the AARGM. Initially the HARM could only lock onto radar emissions, and lost its target if it shut off. The AARGM introduced an imaging radar seeker to be able to find it even in that case. In can be noted the payload much lighter than the typical anti-ship payload, because mobile and fixed radars are much more fragile than a ship. The range of 100km or a bit more is today too small to keep the firing aircraft out of harm’s way, so the US Navy recently developed an extended range version with a flatter airframe, that will be able to glide after its engine has burned out.




On a smaller scale, there is the ARMIGER missile, a German project that never came to fruition but would have used the same ramjet engine as the Meteor air-to-air missile from MBDA. It would have had a passive radar receiver and a terminal infrared seeker for more accuracy, allowing for a reduction of the payload. At only 20kg and a missile weight of 220kg, it could have been carried without impacting too much the range and maneuvrability of a fighter. This would have allowed to put it on the escort fighters of an air raid, instead of having the missile being the main focus of the raid. Some can also remember than in the 2000s the idea of making the Meteor SEAD-capable was floated.

Spear 3 is the most recent evolution of the small SEAD munition concept. It is being developed by the UK (hence why they are not looking to use FCASW for SEAD). The small size allows to fit 4 into each F-35 weapon bay, while still have room to put a Meteor missile in each bay. Architecture-wise, the Spear 3 is a mini cruise missile, with a very small turbojet and a small warhead (probably not more than a dozen kg). It has a two-way datalink for in-flight retargeting and a multi-mode seeker.
The SEAD/DEAD mission is very different from the cruise and anti-ship ones. Speed is important, because when a threat has been detected, an air raid has to quickly remove it. Otherwise, it keeps burning fuel, which can defeat the primary mission, and it has to evade it, and that can be put at risk of other threats. So time is of the essence. The target set also means that payloads one or two orders of magnitude lighter than for cruise are needed.

So while adapting a heavy, subsonic cruise missile for real-time targeting is possible, it does not result in a very usable weapon.

CONCLUSION​

The very different requirements for the missions envisioned for the FC/ASW make very unlikely a single missile will be able to satisfy them all. While there is a common theme in striking well-defended targets, the ideal warhead weight range from around 500kg for the cruise mission, to destroy hardened bunkers, to one or two dozen kg for the anti-radar mission. Besides, the focus of the French military on a highly supersonic solution for anti-ship and anti-radar is at odds with British preferences.

So there are several ways the program could go. The most likely one is that it is split in two, with a common subsonic cruise missile (potentially with anti-ship capabilities for the British) and a Mach 3+ anti-ship/anti-radar missile powered by a ramjet for the French. The latter would probably have a payload around 150kg, far too above the sweet spot for the anti-radar role. However developing only two missiles saves money, even is they are not optimal for all roles.

Another possible option is that the program goes for minimal cost and hence maximum commonality, in which case it would produce a subsonic cruise and anti-ship missile (potentially with two different warheads and maybe seekers), similar to the JASSM/LRASM pair. The anti-radar role would not be addressed adequately however, leading the French to look for a separate solution. Adopting the Spear 3 might be a good one, since its development is already funded, and it is lightweight and extremely well optimized for vehicle hunting. It would likely even fit within the Next-Generation Fighter’s weapon bays. Nevertheless, its limited speed might be a deal breaker, in which case, a Meteor-derived SEAD weapon might be attractive.

Whatever solution the chosen solution ends up being, the offspring of FC/ASW will be the tip of the spear of the two large, power-projection oriented European countries, and will be called upon to face the toughest defences of the middle of the 21st century. Given the current resurgence in international tensions, it is more than likely it will be used in anger at some point.
