United States Navy (USN) : News & Discussions


@randomradio, @Rajput Lion, @Innominate, @Ginvincible

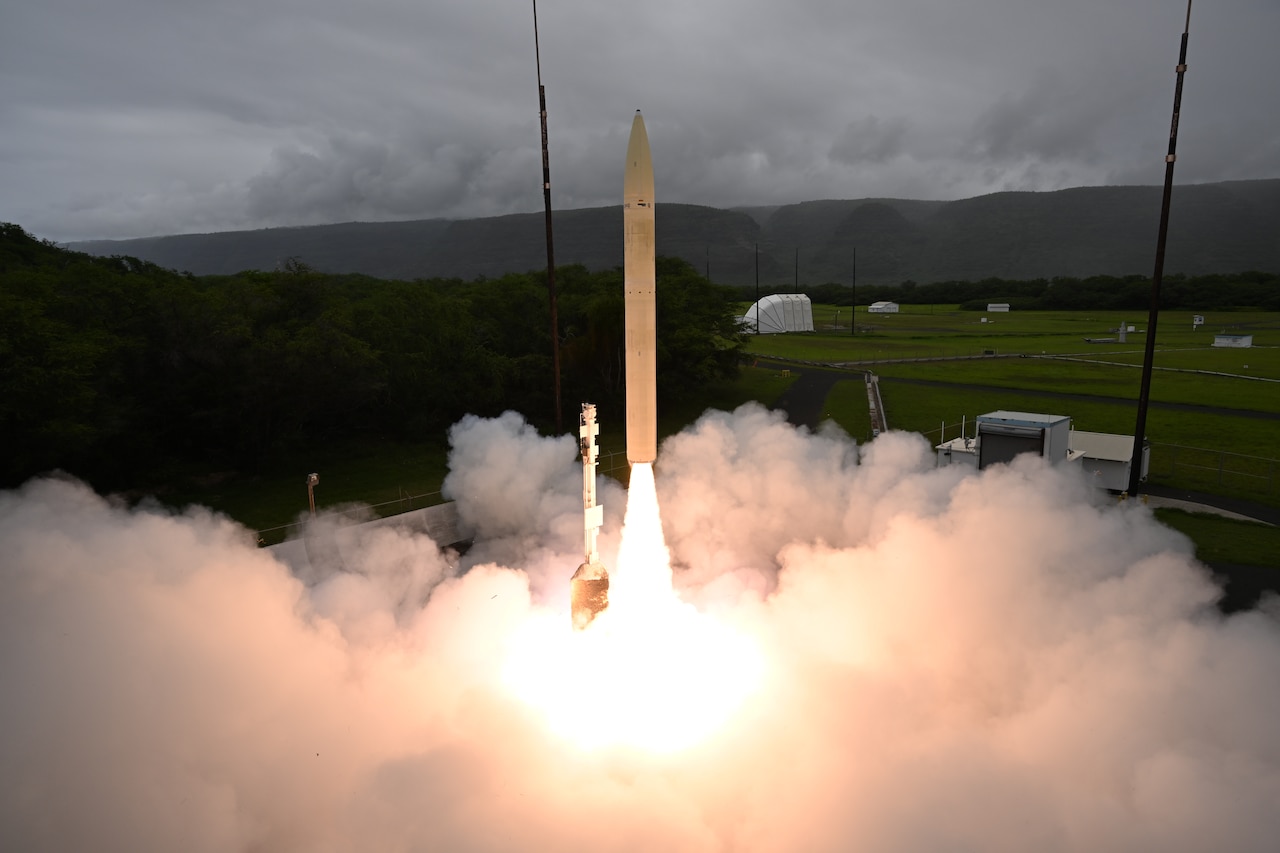

Navy variant (for Ohio SSGNs, Virginia Bpock IVs and Zumwalts) of Dark Eagle known as CPS (Common Prompt Strike) successfully tested.

Note the range figure - 3500km -I got more than that.






16.5 small squares wide and 200 high. Diameter known to be 34.5in = 876.3mm.

(200/16.5) x 876.3mm = 10.62m

BUT slight slant, so ~10.7m


  • Like
Reactions: Fatalis
I am eagerly waiting to see the G-VLS.
I doubt even that would fit a CPS/Dark Eagle in it though, it'll be strictly for the VPMs (Virginia Payload Modules) on the Ohio SSGNs, Block IV Virginias and Zumwalts. G-VLS will likely be based on the Mk57 VLS in the Zumwalts. The navy version is also cold launched from a canister (round tube below), as opposed to the hot launch army version (square tube).






This diagram is misleading because it's actually 3 missiles in each of the 4 VPM tubes.




So far it is on schedule even.

Last edited:
  • Like
Reactions: Fatalis
I doubt even that would fit a CPS/Dark Eagle in it though, it'll be strictly for the VPMs (Virginia Payload Modules) on the Ohio SSGNs, Block IV Virginias and Zumwalts. G-VLS will likely be based on the Mk57 VLS in the Zumwalts. The navy version is also cold launched from a canister (round tube below), as opposed to the hot launch army version (square tube).


View attachment 34411
View attachment 34412
View attachment 34414
View attachment 34415
This diagram is misleading because it's actually 3 missiles in each of the 4 VPM tubes.
View attachment 34417
View attachment 34416


So far it is on schedule even.
View attachment 34413
I think G-VLS will accomodate 1 CPS in each cell. LM claimed that it will even be able to quad-pack SM-2/6.

I think G-VLS will accomodate 1 CPS in each cell. LM claimed that it will even be able to quad-pack SM-2/6.
It won't be that big, CPS is cold-launch canisters from VPMs only. It's 10.7m long and 0.876m wide from what we can establish. It might be able to quad pack SM-2s (I think the Mk57 can), but not SM-6s.
