First pic is very interesting but I doubt the front would be hybrid of aim-120 since the EESM is the same length of the aim-120 so why bother changing it. The second pic I think is much closer to reality.
At one point there was talk of a JDRADM (Joint Dual Role Air Dominance Missile) that could hit aircraft or SAM radars. I wonder if this will do that.


Innominate

Well-Known member
Jun 23, 2021
1,012
665
California
At one point there was talk of a JDRADM (Joint Dual Role Air Dominance Missile) that could hit aircraft or SAM radars. I wonder if this will do that.
Well it is a little wider than the Aim-120 but could still fit 6 inside F-35 so it is possible but the HARM replacement is already is testing phase.

  • Like
Reactions: BMD

BMD

Senior member
Dec 4, 2017
9,804
2,239







BMD

Senior member
Dec 4, 2017
9,804
2,239
DARPA testing new X-Plane


Aurora Flight Sciences, a Boeing Company, recently conducted wind tunnel testing of its X-plane candidate for the Defense Advanced Research Projects Agency (DARPA)’s Control of Revolutionary Aircraft with Novel Effectors (CRANE) program. The data collected provides a rigorous foundation for developing flight control laws using active flow control (AFC) as a primary control effector.​

Wind tunnel testing was conducted as part of phase 1 of DARPA’s CRANE program, which includes system requirements development, initial design work, software development, and initial airworthiness activities. The CRANE program, overall, aims to design, build, and flight test a novel X-plane that demonstrates quantifiable benefits of designing with active flow control.
“Aurora’s work on CRANE continues our history of proving ground-breaking technologies from concept to flight test,” said Per Beith, President and CEO of Aurora Flight Sciences. “Through the DARPA CRANE program, Aurora is advancing AFC technology for application to next generation aircraft.”
Aurora is designing an X-Plane that uses AFC for multiple effects, including flight control at tactical speeds and performance enhancement across the flight envelope. This work is widely applicable, across tactical and non-tactical aircraft, and aims to provide the confidence needed for future aircraft requirements to include AFC-enabled capabilities.
“Leveraging Boeing’s targeted investments in active flow control, our advancements on the CRANE program aim to further validate the technology’s potential benefits to improve efficiency and performance for both commercial and military aircraft,” said Laurette Lahey, Senior Director, Boeing Research and Technology, Flight & Vehicle Technology.

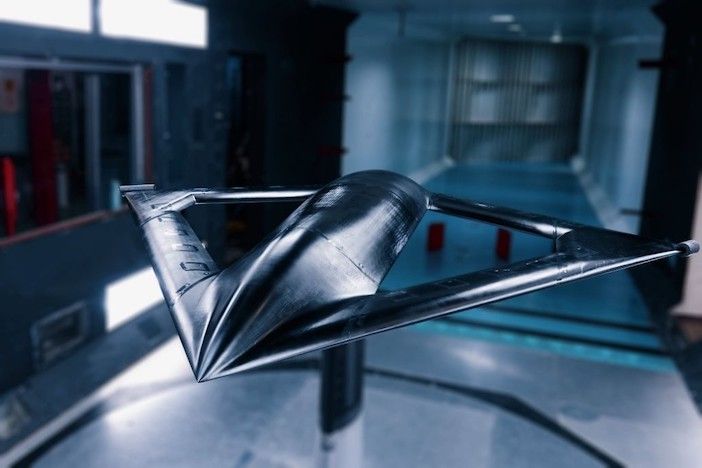

Using a 25% scale model, Aurora conducted tests over four weeks at a wind tunnel facility in San Diego, California. In addition to 11 movable conventional control surfaces, the model featured 14 AFC banks with eight fully independent controllable AFC air supply channels. Over 14,000 data points were collected, including 8,860 AFC control power points, forming the foundation for a flight-quality aerodynamic database to enable rapid execution in future program phases.
The test team consisted of Aurora and Boeing engineers with expertise in aerodynamics, conceptual design engineering, and test & evaluation. Test data has since been incorporated into vehicle models to characterize active flight control performance across the operational envelope and continue progressing design development.




BAE now also selected for Phase 1 on CRANE
The U.S. Defense Advanced Research Projects Agency (DARPA) awarded the contract to BAE Systems to design a full scale demonstrator concept with Active Flow Control at its core. The aircraft’s ability to maneuver in flight without conventional flight control surfaces will enable improved performance, maintainability, and survivability.

The contract award forms part of DARPA’s Control of Revolutionary Aircraft with Novel Effectors (CRANE) project, which intends to inject Active Flow Control technology early into the aircraft design process to demonstrate significant efficiency benefits, as well as improvements to aircraft cost, weight, performance, and reliability.






BMD

Senior member
Dec 4, 2017
9,804
2,239
The team's new system would allow for air travel to reach speeds of Mach six to 17 using the power of an oblique detonation wave, which is stationary and stabilized.
