The Israeli Army received David armored cars from the USA, review. The US supplied Israel with David armored vehicles. In the United States, David armored vehicles are produced at a joint venture with Israel, Shladot, which makes it possible to purchase them using funds from the American military budget. These armored vehicles have also been purchased by the Israeli Defense Forces for 10 years. David armored vehicles are built on the Toyota Land Cruiser and Toyota Hilux chassis and are available in three and five-door versions. The armored vehicles have STANAG 2 level armor, which provides them with protection from 7.62 mm bullets, as well as from 155 mm high-explosive fragmentation projectiles at a distance of 80 meters. The crew of the vehicle is protected from mines with a charge weight of up to 6 kilograms of TNT. David armored vehicles can be equipped with a remote weapon system and communications and reconnaissance equipment. The car has air conditioning. The total weight of the vehicle is up to 4200 kg, engine power is 148 hp. The armored vehicle is capable of carrying up to 8 people.
Israeli self-propelled gun M109A5, crew training. In preparation for a ground offensive in the Gaza Strip. The Israeli army began conducting exercises with artillery units. During the exercises, 155 mm American-made M109A5 self-propelled guns are used. Now this is the main self-propelled gun of the Israeli army; similar self-propelled guns of the M109 series are also in the Ukrainian army. The M109A5 self-propelled gun was developed in the eighties, so in 2019 Israel abandoned plans to repair and modernize the M109 self-propelled gun. The Israeli government plans to replace the M109 self-propelled guns with its new SIGMA wheeled self-propelled guns, we previously talked about it. The A5 modification differs from previous versions of the M109 self-propelled gun in the new M284 gun with an increased barrel length. This provides a firing range of up to 30 kilometers using an active-missile projectile, and a conventional projectile can hit a target at a distance of up to 22 kilometers. The M109A5 ammunition load includes 36 rounds. The self-propelled gun is protected by aluminum armor up to 32 millimeters thick and equipped with a machine gun. Self-propelled gun crew 6 people.
The Israeli army has installed protective canopies against drones on Merkava tanks. Despite Israel's high-tech military industry, it has failed to find solutions to protect tanks and armored vehicles from drones. And all armored vehicles and Merkava tanks began to be equipped with protective canopies against drones. The same protective canopies against drones are installed on Russian and Ukrainian tanks. This decision confirms that now a protective canopy against drones is the only cheap and effective way to protect armored vehicles. Armored vehicles with such protection were seen near the Gaza Strip, it is worth noting that the armored vehicles are collected in large groups in small parking lots, which makes them vulnerable.
Israeli air strikes with BLU-109 concrete-piercing bombs. Israeli aircraft began using BLU-109/B bombs to attack Hamas underground bunkers and tunnels. The American bunker-busting bomb BLU-109/B weighs 907 kilograms and has a warhead weighing 240 kilograms, consisting of tritonal. The bomb is capable of breaking through reinforced concrete floors up to 1.8 meters thick. Accurate targeting can be provided by JDAM or Paveway systems; with the help of these guidance systems, the aerial bomb becomes controllable.
The Israeli army began clearing the rubble and preparing passages for tanks using Caterpillar D9 armored bulldozers. The American bulldozer Caterpillar D9 was developed in 1954. The bulldozer became very popular among construction companies and attracted the attention of the Israeli army. The bulldozer had its armored cab modified and its engine protected by Israel Military Industries. After modernization, the weight of the bulldozer increased by 15 tons and its weight reached 71 tons. Now the Caterpillar D9 is in service with the Older Forum in the D9R modifications, as well as in the older versions of the D9L, there are also remote-controlled D9N bulldozers. The bulldozer is completely protected from small arms fire; the only threat to it is ATGMs. Israeli armored bulldozers turned out to be very effective, and the US Marine Corps also purchased them. The facts of the use of bulldozers in combat conditions indicate good survivability of the machine. For additional protection, bulldozers can be equipped with machine guns and smoke grenade launchers. The bulldozers are equipped with a 474 hp engine. The bulldozer is controlled by a commander and an operator.
The Israeli army showed rare footage of the operation of the Ritsuf remote mine clearance complex, the commercial name of the Carpet complex. The Ritsuf demining complex was developed by Rafael Advanced Defense Systems in 1985 and was modernized in 2017; this complex, called SDPMAC, is also used by France. The complex is installed on the rear of engineering vehicles and armored personnel carriers. The "Ritsuf" mine clearance complex is capable of making a passage about 100 meters long and up to 8 meters wide in a minefield with twenty volumetric explosion rockets, 265mm caliber, in 1 minute. The missiles are launched from a distance of 65 to 165 meters from the front edge of the minefield and are carried out according to a program embedded in the computer. A passage created in a minefield is marked by missile stabilizers protruding from the ground. The complex can also be used to strike objects. The demining installation is operated by 2 people.
The history of the creation of Hamas underground tunnels and the Israeli army's fight against them. The Israeli army has published footage of Hamas underground tunnels discovered and destroyed. Now underground tunnels are the main problem of the Israeli army, the fact is that Hamas does not enter into open confrontation with the Israeli army. Hamas' tactics are to go through a tunnel to a point and attack military equipment from it. Underground tunnels began to be created 30 years ago, the total length of tunnels under the Gaza Strip is now about 500 kilometers. Usually the height of the tunnel is 2 meters and the width is 1 meter, but there are also tunnels in which a passenger car can also pass. The tunnels are laid at a depth of up to 70 meters and they usually lead from the Gaza Strip to Egypt and Israel. Tunnel exits are difficult to detect and are located in homes, hospitals and even schools, as reported by the UN in 2022. The main purpose of the tunnels is to smuggle goods and weapons from Egypt, attack Israeli settlements, soldiers and take hostages. The tunnels are also used as bases for the manufacture and storage of weapons, hospitals, warehouses and for holding hostages there. The Israeli army destroys the tunnels, filling them with concrete and water, striking the places where the tunnels are discovered, but this fight does not bring much success, since the creation of new tunnels is ongoing. This process especially accelerated in 2006 when the Hamas group won the elections in 2006 in the Palestinian Authority. The tunnels are being built by residents of the Gaza Strip hired by the Hamas group. The salary of builders is from 150 to 300 dollars, the working day is up to 12 hours, the speed of creating tunnels is up to 5 meters per day.
Israeli defense concern Rafael Advanced Defense presented an improved configuration of the Spyder All in One air defense system. The new version of the Spyder All in One air defense system includes a built-in radar, an electro-optical radar, an improved command and control system, as well as two types of Python and Derby interceptor missiles located on a mobile platform. The SPYDER air defense system uses Derby missiles, with a range of 35 kilometers, and Python 5 missiles, capable of intercepting targets at a distance of up to 20 kilometers. According to the developers, mounting all short- and medium-range air defense components on one platform is the optimal solution for a new generation of air defense.
Defense demand to drive nLight recovery
Additional $1.2BN funding for Israel's laser-based ‘Iron Beam’ system adds to momentum in directed energy weapons.
optics.org
Air LORA, Israel's Biggest Air-Launched Ballistic Missile, Emerges From The Shadows
The Long Range Artillery (LORA) munition is the latest short-range ballistic missile to have been adapted by Israel as an air-launched weapon.
www.twz.com
On P-8

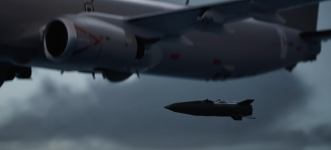

Israel Aerospace Industries introduced the AIR LORA ballistic missile. The AIR LORA missile is based on the Israeli LORA ballistic missiles, but the missile can now be launched from aircraft. The AIR LORA missile is designed to destroy protected targets, command centers and other infrastructure. The missile's advanced INS/GPS navigation and reliable protection against GNSS interference, as well as a 90-degree angle of attack, allow it to confidently hit targets. The missile is equipped with an inertial navigation system for target guidance, which is combined with GPS navigation. The characteristics of the rocket were not reported. The approximate probable deviation of the missile from the target does not exceed 10 meters. The missile warhead has a mass of 240, 400-440 and 600 kg. Depending on the warhead, the maximum flight range of the missile also varies; it ranges from approximately 90 to 430 kilometers; when launched from an aircraft, the missile flies further. The approximate diameter of the rocket is 625 mm, length - 5.2 meters, weight - 1600 kg.
Gravity-throwing trebuchets have been spotted in the Israeli army on the border with Lebanon. Previously, trebuchets were seen in Syria. There are no official comments yet from the leadership of the Israeli army. The first mention of a trebuchet throwing machine appeared in China in the 5th century BC, then in a modified form they appeared all over the world. Trebuchet are usually intended for the siege of cities, but in history there have been cases of their use on ships. Building a trebuchet in such a way as to ensure the required range, accuracy and reliability of fire is not easy. All proportions must be perfectly balanced, and this can be achieved either by knowledge of geometry and mechanics, or by long practical experience.
Israel’s IAI announces new Wind Demon air-to-surface missile - Breaking Defense
The weapon is “a new generation of air-to-surface cruise missile, combining new capabilities based on years of experience in missiles and loitering munition development," Guy Bar Lev, executive vice-president and general manager of IAI’s Systems Missiles and Space Group, said.

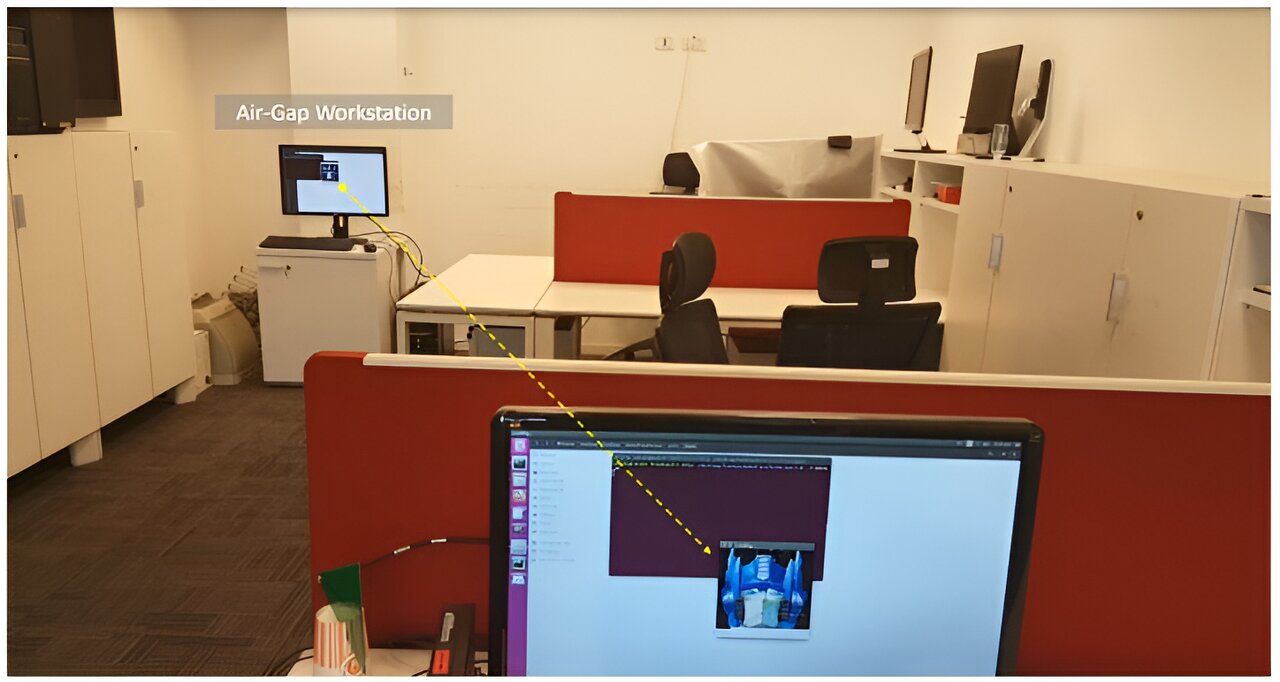

Usable data hacked from air-gapped computer
A team of software and information systems engineers at Ben-Gurion University of the Negev, in Israel, has demonstrated an ability to extract useful data from an air-gapped computer. The group has posted a paper to the arXiv preprint server describing their experiments and results.
The Older Forum has released footage of Israeli Air Force F-15I fighters in action. During Operation New Order, the F-15s reportedly struck a Hezbollah leader's underground bunker in Beirut with an MPR-500 aerial bomb and others. The Israeli MPR-500 bunker buster bomb was introduced by Israel Military Industries Ltd in 2012. The MPR-500 bomb can be modified into a guided munition by installing an American JDAM GPS kit, and a rocket booster can be installed on the bomb. Weighing 227 kg, the MPR-500 bomb contains up to 60 kg of explosive and can penetrate 1 meter of solid concrete or four concrete floors up to 200 mm thick. The MPR 500 provides a concentrated explosive effect, creating about 26,000 fragments within a radius of 100 meters.
Trophy vehicle-defense system gets top-attack upgrade
Manufacturer Rafael claims to have resolved a key vulnerability that has plagued armored vehicles and main battle tanks.
