2nd stage of the Agnikul Cosmos' Agnibaan rocket has been fabricated.


View attachment 21469

Agnikul's 2nd stage KEROLOX semi-cryogenic engine :





Known Specs of the Agnite/Agnilet engine :

Propellant: LOX/Kerosene semi-cryogenic
Thrust: 25.3 kN (Sea Level)
Specific Impulse: 285 sec (Sea Level) & 355 sec (Vacuum Optimized)
Engine cycle: Gas generator (probably)
Feed: Pressure fed (for now)/Electric pump fed(soon)
Cooling: Integrated Regenerative cooling

Also L&T seems to be getting into the space start up action.



Gautam

Team StratFront
Feb 16, 2019
12,542
9,445
Tripura, NE, India
Agnikul's 2nd stage KEROLOX semi-cryogenic engine :





Known Specs of the Agnite/Agnilet engine :

Propellant: LOX/Kerosene semi-cryogenic
Thrust: 25.3 kN (Sea Level)
Specific Impulse: 285 sec (Sea Level) & 355 sec (Vacuum Optimized)
Engine cycle: Gas generator (probably)
Feed: Pressure fed (for now)/Electric pump fed(soon)
Cooling: Integrated Regenerative cooling

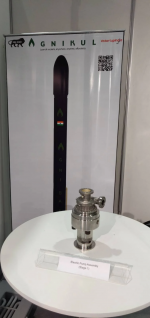

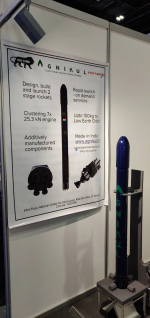

More photos:



Wonder if this is the actual launch pad & launch tower design or just a mock up. Looks good though:

  • Like
Reactions: Parthu

TARGET

Well-Known member
Dec 2, 2017
579
466
When will it lift off into the space? Do they have any timeline? Looks very promising for such a small startup. Even components quickly looks top notch.
If successful, it has potential to revolutionise Indian space industry.
As per Greeb Scientist YouTuber, this cryogenic engine is a TD may be a Higher thrust engine that will be developed for future launch, Skyroot launch will de be done using a solid rocket motor in Phase 1 then they will expand to Cryogenic engine using methane as a propellant. So overall good progress by Skyroot and don't forget this is 3D printed.

  • Haha
Reactions: AbRaj

AbRaj

Senior member
Dec 6, 2017
2,068
1,542
Republic of Wadiya
As per Greeb Scientist YouTuber, this cryogenic engine is a TD may be a Higher thrust engine that will be developed for future launch, Skyroot launch will de be done using a solid rocket motor in Phase 1 then they will expand to Cryogenic engine using methane as a propellant. So overall good progress by Skyroot and don't forget this is 3D printed.
Gareeb Scientist 😀
Yes , It’s a TD as apparent from the size. But they seem like very methodical group. So scaling up will not be much difficult for them, given ISRO too is willing to help these guys.
This demonstration was for cryogenic engine? As it looks like liquid fuel system. Solid rocket motor are generally very smoky and produce erratic flame.
Q4 2022 is their target for first launch
That’s quick

Last edited:
